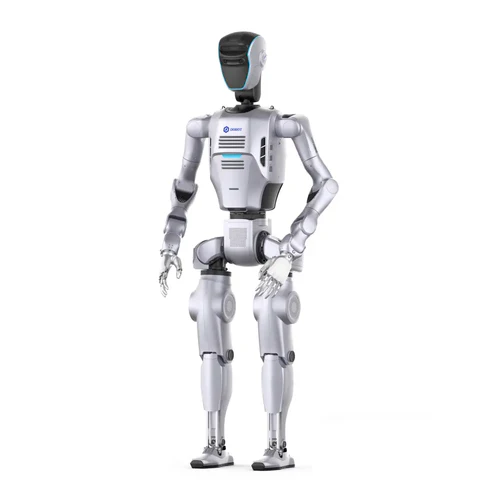

DOBOT Atom – Max

The DOBOT Atom Max Advanced Humanoid AI Research Robot (41 DoF) is DOBOT’s top-tier humanoid, crafted for advanced robotics labs and industrial AI. It supports closed-loop control, dynamic locomotion, and complex manipulation. Designed for breaking new ground in embodied intelligence research.

Description

The DOBOT Atom Max is a cutting-edge 41-DoF humanoid robot designed for advanced robotics research and industrial applications, featuring dexterous 12-DoF hands, a 60FPS Full HD vision system, and Intel RealSense D455 depth sensing. Its optional Embodied AI Set provides high-precision URDF models, an open-source training frame-work, and multi-modal data tools to accelerate development. The Atom Max adds VR/MR teleoperation with mark-erless tracking and dual control modes (full-body/segmented), all powered by a 1500 TOPS AI module for real-time edge computing. With sub-millimeter precision and 360° environmental awareness, it significantly lowers the barrier for AI robotics innovation while supporting complex tasks from precision assembly to dynamic locomotion research.

Specifications
  • Full-body Degrees of Freedom (without dexterous hands/jaws): 29
  • Head Degree of Freedom: 2
  • Single Arm Degrees of Freedom (without dexterous hand/gripper): 7
  • Waist Degree of Freedom: 1
  • Single Leg Degree of Freedom: 6
  • Single Arm Span (without dexterous hand/gripper): 600 mm
  • Single Arm Repetitive Positioning Accuracy: ± 0.05 mm
  • Maximum End Speed of Arm: 1.5 m/s
  • Audio Devices
    • 360° microphone x1
    • Neodymium strong magnetic speaker x2
  • Maximum Walking Speed: 1.5 m/s
  • Joint Assembly Actuators Hollow Alignment: Yes
  • Basic Computing Module: Intel i5
  • 1500 TOPS AI Computing Module
    • Intel i9 (24 cores, 32 threads)
    • Graphics card with 16GB256bit GDDR6 (FP32 GPUcomputing power 41.15 TFLOPS)
  • Battery Life: ≈2h
  • Battery Chargers: ≈1h
  • End Actuator: 6 DoF dexterous hand x2
  • Head Sensor: RGB-D Camera x1 + Full HD Binocular Camera x1
  • Wrist Sensor: RGB-D Camera x2
  • Waist Sensor: RGB-D Camera x2
  • Head LiDAR: 3D LiDAR x1
  • SDK Support: Supported
  • Technical Support: Premium+, Full documentation + exclusive training
  • Onsite Training: Available
  • Single Arm Weight (without dexterous hand/gripper): ≈6.5 kg
  • Single Arm Load (without dexterous hand/gripper): 3.5 kg
  • Weight (without dexterous hands/jaws): ≈62 kg
